Contains the attributes for a dataset. More...

#include <AttrTable.h>

Inheritance diagram for libdap::AttrTable:

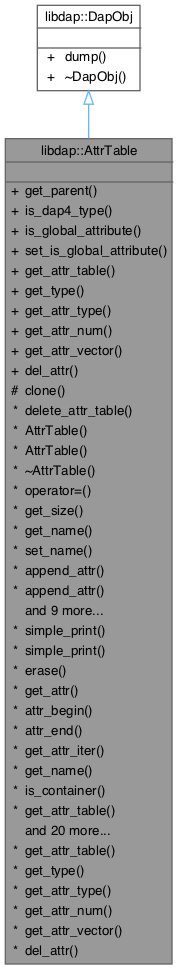

Collaboration diagram for libdap::AttrTable:

Classes
struct	entry

Public Types
typedef std::vector< entry * >::const_iterator	Attr_citer

typedef std::vector< entry * >::iterator	Attr_iter

Public Member Functions
virtual AttrTable *	get_parent () const

bool	is_dap4_type (const std::string &path, std::vector< std::string > &inventory) const

virtual bool	is_global_attribute () const

virtual void	set_is_global_attribute (bool ga)

Accessors using an attribute name
Each of the following accessors get information using the name of an attribute. They perform a simple search for the name in this attribute table only; sub-tables are not searched and the dot notation is not recognized.
virtual AttrTable *	get_attr_table (const string &name)
	Get an attribute container.

virtual string	get_type (const string &name)
	Get the type name of an attribute within this attribute table.

virtual AttrType	get_attr_type (const string &name)
	Get the type of an attribute.

virtual unsigned int	get_attr_num (const string &name)
	Get the number of attributes in this container.

virtual vector< string > *	get_attr_vector (const string &name)
	Get a vector-valued attribute.

virtual void	del_attr (const string &name, int i=-1)
	Deletes an attribute.

Protected Member Functions
void	clone (const AttrTable &at)

Friends
class	AttrTableTest

Instance management functions
	AttrTable ()

	AttrTable (const AttrTable &rhs)

virtual	~AttrTable ()

AttrTable &	operator= (const AttrTable &rhs)

virtual unsigned int	get_size () const
	Get the number of entries in this attribute table.

virtual string	get_name () const
	Get the name of this attribute table.

virtual void	set_name (const string &n)
	Set the name of this attribute table.

virtual unsigned int	append_attr (const string &name, const string &type, const string &value)
	Add an attribute to the table.

virtual unsigned int	append_attr (const string &name, const string &type, vector< string > *values)
	Add an attribute to the table.

virtual unsigned int	append_attr (const string &name, const string &type, const string &value, bool is_utf8_str)
	Add an attribute to the table.

virtual unsigned int	append_attr (const string &name, const string &type, vector< string > *values, bool is_utf8_str)
	Add an attribute to the table.

virtual AttrTable *	append_container (const string &name)
	Add a container to the attribute table.

virtual AttrTable *	append_container (AttrTable *at, const string &name)
	Add a container to the attribute table.

virtual void	find (const string &target, AttrTable *at, Attr_iter iter)

virtual AttrTable *	find_container (const string &target)
	Find an attribute with a given name.

virtual AttrTable *	recurrsive_find (const string &target, Attr_iter *location)

Attr_iter	simple_find (const string &target)

AttrTable *	simple_find_container (const string &target)

get information using an iterator
void	simple_print (FILE *out, string pad, Attr_iter i, bool dereference)

void	simple_print (ostream &out, string pad, Attr_iter i, bool dereference)

virtual void	erase ()
	Erase the attribute table.

virtual string	get_attr (const string &name, unsigned int i=0)

virtual Attr_iter	attr_begin ()

virtual Attr_iter	attr_end ()

virtual Attr_iter	get_attr_iter (int i)

virtual string	get_name (Attr_iter iter)

virtual bool	is_container (Attr_iter iter)

virtual AttrTable *	get_attr_table (Attr_iter iter)

virtual Attr_iter	del_attr_table (Attr_iter iter)

virtual string	get_type (Attr_iter iter)

virtual AttrType	get_attr_type (Attr_iter iter)

virtual unsigned int	get_attr_num (Attr_iter iter)

virtual string	get_attr (Attr_iter iter, unsigned int i=0)

virtual std::vector< string > *	get_attr_vector (Attr_iter iter)

virtual bool	is_global_attribute (Attr_iter iter)

virtual void	set_is_global_attribute (Attr_iter iter, bool ga)

virtual void	add_container_alias (const string &name, AttrTable *src)
	Add an alias to a container held by this attribute table.

virtual void	add_value_alias (AttrTable *at, const string &name, const string &source)
	Add an alias for an attribute.

virtual bool	attr_alias (const string &alias, AttrTable *at, const string &name)
	Adds an alias to the set of attributes.

virtual bool	attr_alias (const string &alias, const string &name)

bool	has_dap4_types (const std::string &path, std::vector< std::string > &inventory) const

virtual void	print (FILE *out, string pad=" ", bool dereference=false)
	Prints the attribute table.

virtual void	print (ostream &out, string pad=" ", bool dereference=false)
	Prints the attribute table.

virtual void	print_xml (FILE *out, string pad=" ", bool constrained=false)

virtual void	print_xml (ostream &out, string pad=" ", bool constrained=false)

void	print_xml_writer (XMLWriter &xml)

void	print_dap4 (XMLWriter &xml)

virtual void	dump (ostream &strm) const
	dumps information about this object

Detailed Description

Contains the attributes for a dataset.

An AttrTable (`‘Attribute Table’') stores a set of names and, for each name, either a type and a value, or another attribute table. The attribute value can be a vector containing many values of the same type. The attributes can have any of the types listed in the AttrType list. However, all attribute types are stored as string data, except for the container type, which is stored as a pointer to another attribute table.

Each element in the attribute table can itself be an attribute table. The table can also contain `‘alias’' attributes whose value is given by the value of another attribute to which it is linked.

The attribute tables have a standard printed representation. There is a member function print() for writing this form. Use the DAS::parse() function to read the printed form.

An attribute table might look something like this:

string long_name "Weekly Means of Sea Surface Temperature";
actual_range {
    Float64 min -1.8;
    Float64 max 35.09;
}
string units "degC";
conversion_data {
    Float64 add_offset 0.;
    Float64 scale_factor 0.0099999998;
}
Int32 missing_value 32767;

Here, long_name, units, and missing_value are simple attributes, and actual_range and conversion_data are container attributes containing other attribute tables.

Note: This class is used only for DAP2.

See also: DAS; AttrType

Definition at line 150 of file AttrTable.h.

Member Typedef Documentation

◆ Attr_citer

typedef std::vector<entry*>::const_iterator libdap::AttrTable::Attr_citer

Definition at line 257 of file AttrTable.h.

◆ Attr_iter

typedef std::vector<entry*>::iterator libdap::AttrTable::Attr_iter

Definition at line 258 of file AttrTable.h.

Constructor & Destructor Documentation

◆ AttrTable() [1/2]

libdap::AttrTable::AttrTable ( )

Definition at line 210 of file AttrTable.cc.

◆ AttrTable() [2/2]

libdap::AttrTable::AttrTable ( const AttrTable & rhs )

Definition at line 212 of file AttrTable.cc.

◆ ~AttrTable()

libdap::AttrTable::~AttrTable ( )

virtual

Definition at line 222 of file AttrTable.cc.

Member Function Documentation

◆ add_container_alias()

void libdap::AttrTable::add_container_alias	(	const string &	name,
		AttrTable *	src )

virtual

Add an alias to a container held by this attribute table.

Parameters

name	The name of the alias. May not use dot notation.
src	The existing attribute container to alias.

Exceptions

Error if an attribute, container or alias called name already exists in this attribute table.

Definition at line 963 of file AttrTable.cc.

◆ add_value_alias()

void libdap::AttrTable::add_value_alias	(	AttrTable *	das,
		const string &	name,
		const string &	source )

virtual

Add an alias for an attribute.

Assume source names an attribute value in some container. Add an alias name for that value in this object.

Parameters

das
name	The name of the alias. May not use dot notation.
source	The name of the attribute to alias. May use dot notation.

Exceptions

Error if the attribute table already contains an attribute, container or alias called name or if an attribute called source does not exist.

Definition at line 997 of file AttrTable.cc.

◆ append_attr() [1/4]

unsigned int libdap::AttrTable::append_attr	(	const string &	name,
		const string &	type,
		const string &	value )

virtual

Add an attribute to the table.

If the given name already refers to an attribute, and the attribute has a value, the given value is appended to the attribute vector. Calling this function repeatedly is the way to append to an attribute vector.

The function throws an Error if the attribute is a container, or if the type of the input value does not match the existing attribute's type. Use append_container() to add container attributes.

This method performs a simple search for name in this attribute table only; sub-tables are not searched and the dot notation is not recognized.

Returns: Returns the length of the added attribute value.

Parameters

name	The name of the attribute to add or modify.
type	The type of the attribute to add or modify.
value	The value to add to the attribute table.

Definition at line 308 of file AttrTable.cc.

◆ append_attr() [2/4]

unsigned int libdap::AttrTable::append_attr	(	const string &	name,
		const string &	type,
		const string &	value,
		bool	is_utf8_str )

virtual

Add an attribute to the table.

If the given name already refers to an attribute, and the attribute has a value, the given value is appended to the attribute vector. Calling this function repeatedly is the way to append to an attribute vector.

The function throws an Error if the attribute is a container, or if the type of the input value does not match the existing attribute's type. Use append_container() to add container attributes.

This method performs a simple search for name in this attribute table only; sub-tables are not searched and the dot notation is not recognized.

Returns: Returns the length of the added attribute value.

Parameters

name	The name of the attribute to add or modify.
type	The type of the attribute to add or modify.
value	The value to add to the attribute table.
is_utf8_str	The flag to indicate if this is a utf8 string.

Definition at line 415 of file AttrTable.cc.

◆ append_attr() [3/4]

unsigned int libdap::AttrTable::append_attr	(	const string &	name,
		const string &	type,
		vector< string > *	values )

virtual

Add an attribute to the table.

This version of append_attr() takes a vector<string> of values. If the given name already refers to an attribute, and the attribute has values, append the new values to the existing ones.

The function throws an Error if the attribute is a container, or if the type of the input value does not match the existing attribute's type. Use append_container() to add container attributes.

This method performs a simple search for name in this attribute table only; sub-tables are not searched and the dot notation is not recognized.

Returns: Returns the length of the added attribute value.

Parameters

name	The name of the attribute to add or modify.
type	The type of the attribute to add or modify.
values	A vector of values. Note: The vector is COPIED, not stored.

Definition at line 361 of file AttrTable.cc.

◆ append_attr() [4/4]

unsigned int libdap::AttrTable::append_attr	(	const string &	name,
		const string &	type,
		vector< string > *	values,
		bool	is_utf8_str )

virtual

Add an attribute to the table.

This version of append_attr() takes a vector<string> of values. If the given name already refers to an attribute, and the attribute has values, append the new values to the existing ones.

The function throws an Error if the attribute is a container, or if the type of the input value does not match the existing attribute's type. Use append_container() to add container attributes.

This method performs a simple search for name in this attribute table only; sub-tables are not searched and the dot notation is not recognized.

Returns: Returns the length of the added attribute value.

Parameters

name	The name of the attribute to add or modify.
type	The type of the attribute to add or modify.
values	A vector of values. Note: The vector is COPIED, not stored.
is_utf8_str	The flag to indicate if this is a utf8 string.

Definition at line 471 of file AttrTable.cc.

◆ append_container() [1/2]

AttrTable * libdap::AttrTable::append_container	(	AttrTable *	at,
		const string &	name )

virtual

Add a container to the attribute table.

Append a new attribute container to this attribute table. The new container is at and its name is set to name. If this attribute table already contains an attribute container called name an exception is thrown.

Note: The value of name will override the name of at set using the set_name() method.

Parameters

at	A pointer to the new attribute table to append.
name	The name of the new attribute table.

Returns: A pointer to the new AttrTable object.

Definition at line 545 of file AttrTable.cc.

◆ append_container() [2/2]

AttrTable * libdap::AttrTable::append_container ( const string & name )

virtual

Add a container to the attribute table.

Create and append an attribute container to this AttrTable. If this attribute table already contains an attribute container called name an exception is thrown. Return a pointer to the new container.

Parameters

name	The name of the container to create.

Returns: A pointer to the new AttrTable object.

Definition at line 517 of file AttrTable.cc.

◆ attr_alias() [1/2]

bool libdap::AttrTable::attr_alias	(	const string &	alias,
		AttrTable *	at,
		const string &	name )

virtual

Adds an alias to the set of attributes.

Once an alias is inserted into an attribute table, reading the attributes for alias will return those stored for name.

Two forms for this function exist: one searches for name in the AttrTable referenced by at while the other uses this. You can use DAS::get_attr_table() to get the attribute table for an arbitrary name.

See also: get_attr_table

Deprecated: The current alias design is flawed. It is impossible to map this onto the XML implementation where the DAS and DDS information are combined in one object.

Parameters

alias	The alias to insert into the attribute table.
name	The name of the already-existing attribute to which the alias will refer.
at	An attribute table in which to insert the alias.

Definition at line 1069 of file AttrTable.cc.

◆ attr_alias() [2/2]

bool libdap::AttrTable::attr_alias	(	const string &	alias,
		const string &	name )

virtual

Deprecated: The current alias design is flawed. It is impossible to map this onto the XML implementation where the DAS and DDS information are combined in one object.

Parameters

alias	The alias to insert into the attribute table.
name	The name of the already-existing attribute to which the alias will refer.

Definition at line 1081 of file AttrTable.cc.

◆ attr_begin()

AttrTable::Attr_iter libdap::AttrTable::attr_begin ( )

virtual

Get an iterator to the first entry in this attribute table.

Returns: Attr_iter; references the end of the array if empty list.

Definition at line 793 of file AttrTable.cc.

◆ attr_end()

AttrTable::Attr_iter libdap::AttrTable::attr_end ( )

virtual

Get an iterator to the end attribute table. Does not point to the last attribute in the table

Returns: Attr_iter

Definition at line 798 of file AttrTable.cc.

◆ clone()

void libdap::AttrTable::clone ( const AttrTable & at )

protected

Clone the given attribute table in this. Protected.

Definition at line 182 of file AttrTable.cc.

◆ del_attr()

void libdap::AttrTable::del_attr	(	const string &	name,
		int	i = -1 )

virtual

Deletes an attribute.

Delete the attribute named name. If i is given, and the attribute has a vector value, delete the i$^th$ element of the vector.

You can use this function to delete container attributes, although the i parameter has no meaning for that operation.

Parameters

name	The name of the attribute to delete. This can be an attribute of any type, including containers. However, this method looks only in this attribute table and does not recognize the dot notation.
i	If the named attribute is a vector, and `i` is non-negative, the i-th entry in the vector is deleted, and the array is repacked. If `i` equals -1 (the default), the entire attribute is deleted.

Definition at line 759 of file AttrTable.cc.

◆ del_attr_table()

AttrTable::Attr_iter libdap::AttrTable::del_attr_table ( Attr_iter iter )

virtual

Delete the iterator. Since AttrTable stores pointers to AttrTable objects, the caller should be sure to delete the AttrTable itself. The caller will gain control of the AttrTable* located at get_attr_table(iter) prior to this call.

Note: The original semantics of this methods were odd. The caller was responsible for deleting the AttrTable, but if they did that before calling this, then memory corruption would happen (because this code accesses a field of the table). If the caller did not delete the table, memory leaked. The only correct way to call the method was to grab the pointer, call this and then delete the pointer. I added a call to delete the contained AttrTable pointer, which changes the behavior of this, but probably in a way that will fix leaks in existing code. This change can be reverted by setting NEW_DEL_ATTR_TABLE_BEHAVIOR to false. jhrg 4/26/13; calling this method invalidates the iterator iter.

Parameters

iter	points to the entry to be deleted.

Returns: The Attr_iter for the element following iter

Definition at line 848 of file AttrTable.cc.

◆ dump()

void libdap::AttrTable::dump ( ostream & strm ) const

virtual

dumps information about this object

Displays the pointer value of this instance and all attributes stored

Parameters

strm	C++ i/o stream to dump the information to

Returns: void

Implements libdap::DapObj.

Definition at line 1595 of file AttrTable.cc.

◆ erase()

void libdap::AttrTable::erase ( )

virtual

Erase the attribute table.

Erase the entire attribute table. This returns an AttrTable to the empty state that's the same as the object generated by the null constructor.

Definition at line 1105 of file AttrTable.cc.

◆ find()

void libdap::AttrTable::find	(	const string &	target,
		AttrTable **	at,
		Attr_iter *	iter )

virtual

Look for an attribute or an attribute container. If used to search for an attribute container, this method returns the container's parent using the value-result parameter at and a reference to the container using the iterator value-result parameter iter. If used to search for an attribute, the attribute's container is returned using at; the attribute itself can be accessed using the iterator iter.

Parameters

target	The name (using dot notation) of the attribute or container to find.
at	A value-result used to return the attribute container in which `target` was found. Null if `target` was not found.
iter	The iterator which will reference the attribute found. Can be used to access `target` from within `at`. References dim_end() within `at` if the attribute or container does not exist.

Definition at line 586 of file AttrTable.cc.

◆ find_container()

AttrTable * libdap::AttrTable::find_container ( const string & target )

virtual

Find an attribute with a given name.

Look in this attribute table for an attribute container named target. The search starts at this attribute table; target should use the dot notation to name containers held within children of this attribute table.

To search the entire DAS object, make sure to invoke this method from that object.

Parameters

target The attribute container to find.

Returns: A pointer to the attribute table or null if the container cannot be found.

Definition at line 663 of file AttrTable.cc.

◆ get_attr() [1/2]

string libdap::AttrTable::get_attr	(	Attr_iter	iter,
		unsigned int	i = 0 )

virtual

Returns the value of an attribute. If the attribute has a vector value, you can indicate which is the desired value with the index argument, i. If the argument is omitted, the first value is returned. If the attribute has only a single value, the index argument is ignored. If i is greater than the number of elements in the attribute, an error is produced.

All values in an attribute table are stored as string data. They may be converted to a more appropriate internal format by the calling program.

Parameters

iter	Reference to an attribute
i	The attribute value index, zero-based. Default value: 0

Returns: If the indicated attribute is a container, this function returns the string `‘None’'. If using a name to refer to the attribute and the named attribute does not exist, return the empty string.

Definition at line 912 of file AttrTable.cc.

◆ get_attr() [2/2]

string libdap::AttrTable::get_attr	(	const string &	name,
		unsigned int	i = 0 )

virtual

Definition at line 918 of file AttrTable.cc.

◆ get_attr_iter()

AttrTable::Attr_iter libdap::AttrTable::get_attr_iter ( int i )

virtual

Given an index i, return the Attr_iter to the corresponding element. This method provides a way to use all the methods that take an Attr_iter using a simple integer index. Use the get_attr_num() or get_size() methods to determine how many items the AttrTable contains.

Parameters

i The index

Returns: The corresponding Attr_iter

See also: get_attr_num, get_size

Definition at line 808 of file AttrTable.cc.

◆ get_attr_num() [1/2]

unsigned int libdap::AttrTable::get_attr_num ( Attr_iter iter )

virtual

If the attribute referenced by iter is a container attribute, this method returns the number of attributes in its attribute table. If the indicated attribute is not a container, the method returns the number of values for the attribute (1 for a scalar attribute, N for a vector attribute value).

Parameters

iter	Reference to an attribute

Returns: The number of elements in the attribute.

Definition at line 891 of file AttrTable.cc.

◆ get_attr_num() [2/2]

unsigned int libdap::AttrTable::get_attr_num ( const string & name )

virtual

Get the number of attributes in this container.

If the indicated attribute is a container attribute, this function returns the number of attributes in its attribute table. If the indicated attribute is not a container, the method returns the number of values for the attribute (1 for a scalar attribute, N for a vector attribute value).

Definition at line 721 of file AttrTable.cc.

◆ get_attr_table() [1/2]

AttrTable * libdap::AttrTable::get_attr_table ( Attr_iter iter )

virtual

Get the attribute container referenced by iter. If no such container exists, then return a reference to the end of the table.

Parameters

iter	Reference to a table contained by this object.

Returns: The child attribute table.

Definition at line 825 of file AttrTable.cc.

◆ get_attr_table() [2/2]

AttrTable * libdap::AttrTable::get_attr_table ( const string & name )

virtual

Get an attribute container.

Definition at line 699 of file AttrTable.cc.

◆ get_attr_type() [1/2]

AttrType libdap::AttrTable::get_attr_type ( Attr_iter iter )

virtual

Get the type of the attribute referenced by iter.

Parameters

iter

Returns: The datatype of this attribute in an instance of AttrType.

Definition at line 882 of file AttrTable.cc.

◆ get_attr_type() [2/2]

AttrType libdap::AttrTable::get_attr_type ( const string & name )

virtual

Get the type of an attribute.

Returns: The AttrType value describing the attribute.

Definition at line 709 of file AttrTable.cc.

◆ get_attr_vector() [1/2]

vector< string > * libdap::AttrTable::get_attr_vector ( Attr_iter iter )

virtual

Returns a pointer to the vector of values associated with the attribute referenced by iterator iter.

Note that all values in an attribute table are stored as string data. They may be converted to a more appropriate internal format by the calling program.

Parameters

iter	Reference to the Attribute.

Returns: If the indicated attribute is a container, this function returns the null pointer. Otherwise returns a pointer to the the attribute vector value.

Definition at line 934 of file AttrTable.cc.

◆ get_attr_vector() [2/2]

vector< string > * libdap::AttrTable::get_attr_vector ( const string & name )

virtual

Get a vector-valued attribute.

Get a pointer to the vector of values associated with the attribute referenced by Pix p or named name.

Note that all values in an attribute table are stored as string data. They may be converted to a more appropriate internal format by the calling program.

Returns: If the indicated attribute is a container, this function returns the null pointer. Otherwise returns a pointer to the the attribute vector value.

Definition at line 738 of file AttrTable.cc.

◆ get_name() [1/2]

string libdap::AttrTable::get_name ( ) const

virtual

Get the name of this attribute table.

Returns: A string containing the name.

Definition at line 243 of file AttrTable.cc.

◆ get_name() [2/2]

string libdap::AttrTable::get_name ( Attr_iter iter )

virtual

Returns the name of the attribute referenced by iter.

Definition at line 811 of file AttrTable.cc.

◆ get_parent()

virtual AttrTable * libdap::AttrTable::get_parent ( ) const

inlinevirtual

Return a pointer to the AttrTable which holds this table (aka, its parent. If this AttrTable has no parent, this returns null.

Returns: A pointer to the parent AttrTable.

Definition at line 298 of file AttrTable.h.

◆ get_size()

unsigned int libdap::AttrTable::get_size ( ) const

virtual

Get the number of entries in this attribute table.

Attributes that are containers count as one attribute, as do attributes with both scalar and vector values.

Returns: The number of entries.

Definition at line 239 of file AttrTable.cc.

◆ get_type() [1/2]

string libdap::AttrTable::get_type ( Attr_iter iter )

virtual

Get the type name of an attribute referenced by iter.

Parameters

iter	Reference to the Attribute.

Returns: A string with the name of this attribute datatype.

Definition at line 874 of file AttrTable.cc.

◆ get_type() [2/2]

string libdap::AttrTable::get_type ( const string & name )

virtual

Get the type name of an attribute within this attribute table.

Definition at line 702 of file AttrTable.cc.

◆ has_dap4_types()

bool libdap::AttrTable::has_dap4_types	(	const std::string &	path,
		std::vector< std::string > &	inventory ) const

Checks the child Attributes for ones with dap4 types and, when found, adds a description of each to the inventory

Parameters

path
inventory

Returns: true when dap4 types are found, false otherwise.

Definition at line 1089 of file AttrTable.cc.

◆ is_container()

bool libdap::AttrTable::is_container ( Attr_iter i )

virtual

Returns true if the attribute referenced by i is a container.

Definition at line 818 of file AttrTable.cc.

◆ is_dap4_type()

bool libdap::AttrTable::is_dap4_type	(	const std::string &	path,
		std::vector< std::string > &	inventory ) const

◆ is_global_attribute() [1/2]

virtual bool libdap::AttrTable::is_global_attribute ( ) const

inlinevirtual

Definition at line 300 of file AttrTable.h.

◆ is_global_attribute() [2/2]

bool libdap::AttrTable::is_global_attribute ( Attr_iter iter )

virtual

Definition at line 939 of file AttrTable.cc.

◆ operator=()

AttrTable & libdap::AttrTable::operator= ( const AttrTable & rhs )

Definition at line 224 of file AttrTable.cc.

◆ print() [1/2]

void libdap::AttrTable::print	(	FILE *	out,
		string	pad = " ",
		bool	dereference = false )

virtual

Prints the attribute table.

Prints an ASCII representation of the attribute table to the indicated FILE pointer. The pad argument is prefixed to each line of the output to provide control of indentation.

Parameters

out	Print to the given output FILE.
pad	Indent elements of a table using this string of spaces. By default this is a string of four spaces
dereference	If true, follow aliases. Default is false.

Definition at line 1327 of file AttrTable.cc.

◆ print() [2/2]

void libdap::AttrTable::print	(	ostream &	out,
		string	pad = " ",
		bool	dereference = false )

virtual

Prints the attribute table.

Prints an ASCII representation of the attribute table to the indicated output stream. The pad argument is prefixed to each line of the output to provide control of indentation.

Parameters

out	Print to the given output stream.
pad	Indent elements of a table using this string of spaces. By default this is a string of four spaces
dereference	If true, follow aliases. Default is false.

Definition at line 1368 of file AttrTable.cc.

◆ print_dap4()

void libdap::AttrTable::print_dap4 ( XMLWriter & xml )

Write the DAP4 XML representation for this attribute table. This method is used to build the DAP4 DMR response object.

Parameters

xml	An XMLWriter that will do the serialization

Definition at line 1586 of file AttrTable.cc.

◆ print_xml() [1/2]

void libdap::AttrTable::print_xml	(	FILE *	out,
		string	pad = " ",
		bool	constrained = false )

virtual

Print the attribute table in XML.

Parameters

out	Destination
pad	Indent lines of text/xml this much. Default is four spaces.
constrained	Not used

Deprecated

Definition at line 1392 of file AttrTable.cc.

◆ print_xml() [2/2]

void libdap::AttrTable::print_xml	(	ostream &	out,
		string	pad = " ",
		bool	constrained = false )

virtual

Deprecated

Definition at line 1456 of file AttrTable.cc.

◆ print_xml_writer()

void libdap::AttrTable::print_xml_writer ( XMLWriter & xml )

Print the attribute table in XML.

Parameters

out	Destination stream
pad	Indent lines of text/xml this much. Default is four spaces.
constrained	Not used

Definition at line 1502 of file AttrTable.cc.

◆ recurrsive_find()

AttrTable * libdap::AttrTable::recurrsive_find	(	const string &	target,
		Attr_iter *	location )

virtual

This method scans for attributes using recursion to look inside containers even when the name of the attribute is not fully qualified. It starts looking in itself and descends into its children depth first. It will find attributes and attribute containers.

Parameters

target	Look for the attribute with this name.
location	A value-result parameter. This returns an iterator to the attribute within the returned AttrTable object

Returns: Returns a pointer to the AttrTable which holds target, or null if target is not found. In the latter case, the value of location is attr_end() for this AttrTable.

Definition at line 614 of file AttrTable.cc.

◆ set_is_global_attribute() [1/2]

void libdap::AttrTable::set_is_global_attribute	(	Attr_iter	iter,
		bool	ga )

virtual

Definition at line 947 of file AttrTable.cc.

◆ set_is_global_attribute() [2/2]

virtual void libdap::AttrTable::set_is_global_attribute ( bool ga )

inlinevirtual

Definition at line 301 of file AttrTable.h.

◆ set_name()

void libdap::AttrTable::set_name ( const string & n )

virtual

Set the name of this attribute table.

Parameters

n	The new name of the attribute table.

Definition at line 247 of file AttrTable.cc.

◆ simple_find()

AttrTable::Attr_iter libdap::AttrTable::simple_find ( const string & target )

Look in this AttrTable for the attribute called name. If found return an Attr_iter which references it, otherwise return the end iterator for this AttrTable.

Parameters

target The name of the attribute.

Returns: An Attr_iter which references target.

Definition at line 640 of file AttrTable.cc.

◆ simple_find_container()

AttrTable * libdap::AttrTable::simple_find_container ( const string & target )

Definition at line 677 of file AttrTable.cc.

◆ simple_print() [1/2]

void libdap::AttrTable::simple_print	(	FILE *	out,
		string	pad,
		Attr_iter	i,
		bool	dereference )

protected

A simple printer that does nothing fancy with aliases. Protected.

Definition at line 1178 of file AttrTable.cc.

◆ simple_print() [2/2]

void libdap::AttrTable::simple_print	(	ostream &	out,
		string	pad,
		Attr_iter	i,
		bool	dereference )

protected

A simple printer that does nothing fancy with aliases. Protected.

Definition at line 1247 of file AttrTable.cc.

Friends And Related Symbol Documentation

◆ AttrTableTest

friend class AttrTableTest

friend

Definition at line 275 of file AttrTable.h.

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Protected Member Functions

Friends

Instance management functions

get information using an iterator

Detailed Description

Member Typedef Documentation

◆ Attr_citer

◆ Attr_iter

Constructor & Destructor Documentation

◆ AttrTable() [1/2]

◆ AttrTable() [2/2]

◆ ~AttrTable()

Member Function Documentation

◆ add_container_alias()

◆ add_value_alias()

◆ append_attr() [1/4]

◆ append_attr() [2/4]

◆ append_attr() [3/4]

◆ append_attr() [4/4]

◆ append_container() [1/2]

◆ append_container() [2/2]

◆ attr_alias() [1/2]

◆ attr_alias() [2/2]

◆ attr_begin()

◆ attr_end()

◆ clone()

◆ del_attr()

◆ del_attr_table()

◆ dump()

◆ erase()

◆ find()

◆ find_container()

◆ get_attr() [1/2]

◆ get_attr() [2/2]

◆ get_attr_iter()

◆ get_attr_num() [1/2]

◆ get_attr_num() [2/2]

◆ get_attr_table() [1/2]

◆ get_attr_table() [2/2]

◆ get_attr_type() [1/2]

◆ get_attr_type() [2/2]

◆ get_attr_vector() [1/2]

◆ get_attr_vector() [2/2]

◆ get_name() [1/2]

◆ get_name() [2/2]

◆ get_parent()

◆ get_size()

◆ get_type() [1/2]

◆ get_type() [2/2]

◆ has_dap4_types()

◆ is_container()

◆ is_dap4_type()

◆ is_global_attribute() [1/2]

◆ is_global_attribute() [2/2]

◆ operator=()

◆ print() [1/2]

◆ print() [2/2]

◆ print_dap4()

◆ print_xml() [1/2]

◆ print_xml() [2/2]

◆ print_xml_writer()

◆ recurrsive_find()

◆ set_is_global_attribute() [1/2]

◆ set_is_global_attribute() [2/2]

◆ set_name()

◆ simple_find()

◆ simple_find_container()

◆ simple_print() [1/2]

◆ simple_print() [2/2]

Friends And Related Symbol Documentation

◆ AttrTableTest
