Base class for the BES's commands. More...

#include <BESXMLCommand.h>

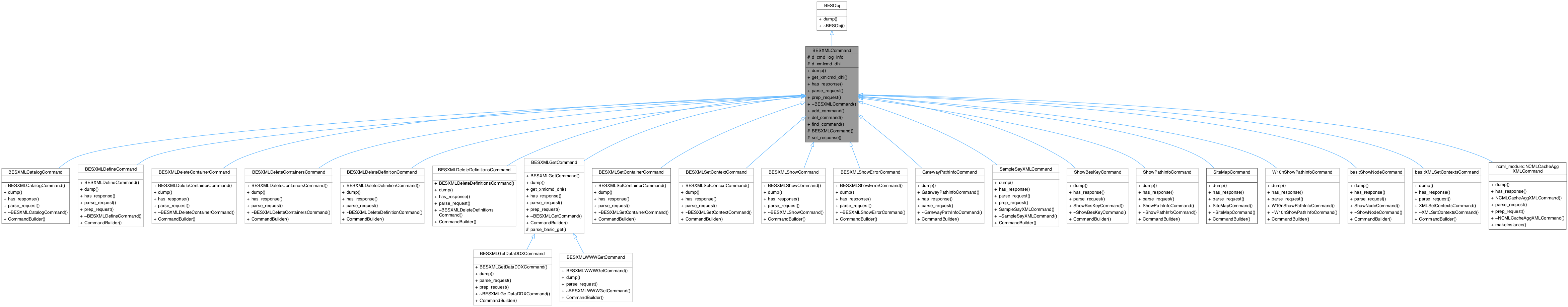

Inheritance diagram for BESXMLCommand:

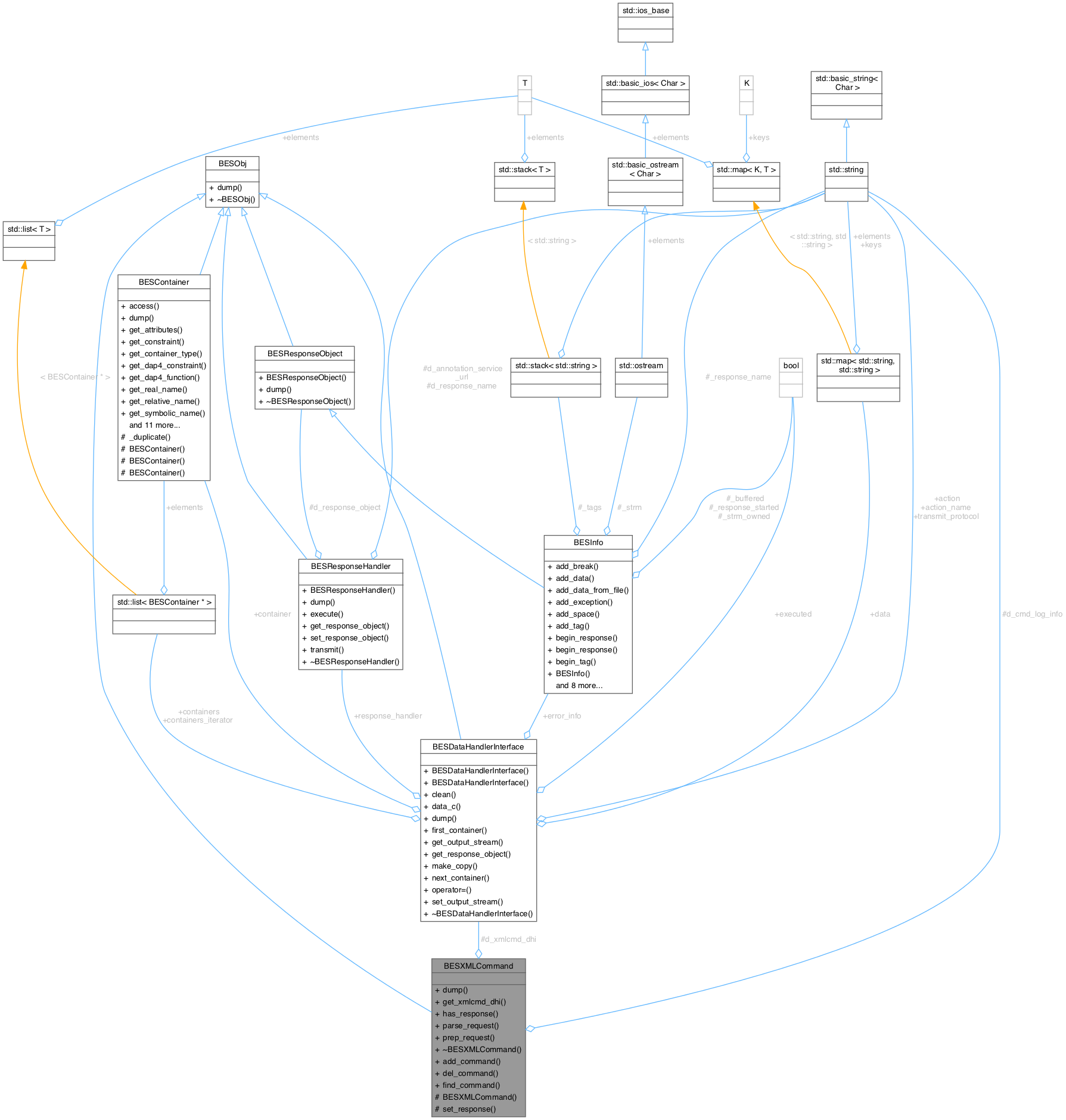

Collaboration diagram for BESXMLCommand:

Public Member Functions
virtual void	dump (std::ostream &strm) const
	dumps information about this object

virtual BESDataHandlerInterface &	get_xmlcmd_dhi ()
	Return the current BESDataHandlerInterface.

virtual bool	has_response ()=0
	Does this command return a response to the client?

virtual void	parse_request (xmlNode *node)=0
	Parse the XML request document beginning at the given node.

virtual void	prep_request ()
	Prepare any information needed to execute the request of this command.

Static Public Member Functions
static void	add_command (const std::string &cmd_str, p_xmlcmd_builder cmd)
	Add a command to the possible commands allowed by this BES.

static void	del_command (const std::string &cmd_str)
	Deletes the command called cmd_str from the list of possible commands.

static p_xmlcmd_builder	find_command (const std::string &cmd_str)
	Find the BESXMLCommand creation function with the given name.

Protected Member Functions
	BESXMLCommand (const BESDataHandlerInterface &base_dhi)
	Creates a BESXMLCommand document given a base data handler interface object.

virtual void	set_response ()
	The request has been parsed, use the command action name to set the response handler.

Protected Attributes
std::string	d_cmd_log_info
	Used only for the log.

BESDataHandlerInterface	d_xmlcmd_dhi

Detailed Description

Base class for the BES's commands.

Maintains a factory for used to build all of the BES's commands. This class also holds instances of the DataHandlerInterface used by a particular instance of a command and the information about this command that should be written to the BES log.

@ The set_response() is used to form a linkage between the code

Definition at line 64 of file BESXMLCommand.h.

Constructor & Destructor Documentation

◆ BESXMLCommand()

BESXMLCommand::BESXMLCommand ( const BESDataHandlerInterface & base_dhi )

protected

Creates a BESXMLCommand document given a base data handler interface object.

Since there can be multiple commands within a single BES request document, there can be multiple data handler interface objects created. Use the one passed as the base interface handler object

Definition at line 57 of file BESXMLCommand.cc.

◆ ~BESXMLCommand()

virtual BESXMLCommand::~BESXMLCommand ( )

inlinevirtual

Definition at line 80 of file BESXMLCommand.h.

Member Function Documentation

◆ add_command()

void BESXMLCommand::add_command	(	const std::string &	cmd_str,
		p_xmlcmd_builder	cmd )

static

Add a command to the possible commands allowed by this BES.

This adds a function to parse a specific BES command within the BES request document using the given name. If a command element is found with the name cmd_str, then the XMLCommand object is created using the passed cmd object.

Parameters

cmd_str	The name of the command
cmd	The function to call to create the BESXMLCommand object

Definition at line 88 of file BESXMLCommand.cc.

◆ del_command()

void BESXMLCommand::del_command ( const std::string & cmd_str )

static

Deletes the command called cmd_str from the list of possible commands.

Parameters

cmd_str The name of the command to remove from the list

Definition at line 98 of file BESXMLCommand.cc.

◆ dump()

void BESXMLCommand::dump ( std::ostream & strm ) const

virtual

dumps information about this object

Displays the pointer value of this instance

Parameters

strm	C++ i/o stream to dump the information to

Implements BESObj.

Reimplemented in bes::ShowNodeCommand, bes::XMLSetContextsCommand, BESXMLCatalogCommand, BESXMLDefineCommand, BESXMLDeleteContainerCommand, BESXMLDeleteContainersCommand, BESXMLDeleteDefinitionCommand, BESXMLDeleteDefinitionsCommand, BESXMLGetCommand, BESXMLSetContainerCommand, BESXMLSetContextCommand, BESXMLShowCommand, BESXMLShowErrorCommand, BESXMLWWWGetCommand, GatewayPathInfoCommand, SampleSayXMLCommand, ShowBesKeyCommand, ShowPathInfoCommand, SiteMapCommand, and W10nShowPathInfoCommand.

Definition at line 121 of file BESXMLCommand.cc.

◆ find_command()

p_xmlcmd_builder BESXMLCommand::find_command ( const std::string & cmd_str )

static

Find the BESXMLCommand creation function with the given name.

Parameters

cmd_str The name of the command creation function to find

Definition at line 110 of file BESXMLCommand.cc.

◆ get_xmlcmd_dhi()

virtual BESDataHandlerInterface & BESXMLCommand::get_xmlcmd_dhi ( )

inlinevirtual

Return the current BESDataHandlerInterface.

Since there can be multiple commands within a single request document, different interface objects can be created. This returns the current interface object

Returns: The current BESDataHandlerInterface object

Reimplemented in BESXMLGetCommand.

Definition at line 121 of file BESXMLCommand.h.

◆ has_response()

virtual bool BESXMLCommand::has_response ( )

pure virtual

Does this command return a response to the client?

Every command has an associated ResponseHandler, but not all ResponseHandlers return information to the BES's client. In fact, for any group of commands sent to the BES, only one can return information (except for errors, which stop command processing). If this command does not normally return a response (text or binary data), the value of this method should be false.

Returns: true if it returns a response, false otherwise

Implemented in bes::ShowNodeCommand, bes::XMLSetContextsCommand, BESXMLCatalogCommand, BESXMLDefineCommand, BESXMLDeleteContainerCommand, BESXMLDeleteContainersCommand, BESXMLDeleteDefinitionCommand, BESXMLDeleteDefinitionsCommand, BESXMLGetCommand, BESXMLSetContainerCommand, BESXMLSetContextCommand, BESXMLShowCommand, BESXMLShowErrorCommand, GatewayPathInfoCommand, ncml_module::NCMLCacheAggXMLCommand, SampleSayXMLCommand, ShowBesKeyCommand, ShowPathInfoCommand, SiteMapCommand, and W10nShowPathInfoCommand.

◆ parse_request()

virtual void BESXMLCommand::parse_request ( xmlNode * node )

pure virtual

Parse the XML request document beginning at the given node.

Parameters

node	Begin parsing at this XML node

Implemented in bes::ShowNodeCommand, bes::XMLSetContextsCommand, BESXMLCatalogCommand, BESXMLDefineCommand, BESXMLDeleteContainerCommand, BESXMLDeleteContainersCommand, BESXMLDeleteDefinitionCommand, BESXMLDeleteDefinitionsCommand, BESXMLGetCommand, BESXMLGetDataDDXCommand, BESXMLSetContainerCommand, BESXMLSetContextCommand, BESXMLShowCommand, BESXMLShowErrorCommand, BESXMLWWWGetCommand, GatewayPathInfoCommand, ncml_module::NCMLCacheAggXMLCommand, SampleSayXMLCommand, ShowBesKeyCommand, ShowPathInfoCommand, SiteMapCommand, and W10nShowPathInfoCommand.

◆ prep_request()

virtual void BESXMLCommand::prep_request ( )

inlinevirtual

Prepare any information needed to execute the request of this command.

Reimplemented in BESXMLDefineCommand, BESXMLGetCommand, BESXMLGetDataDDXCommand, ncml_module::NCMLCacheAggXMLCommand, and SampleSayXMLCommand.

Definition at line 108 of file BESXMLCommand.h.

◆ set_response()

void BESXMLCommand::set_response ( )

protectedvirtual

The request has been parsed, use the command action name to set the response handler.

Definition at line 65 of file BESXMLCommand.cc.

Member Data Documentation

◆ d_cmd_log_info

std::string BESXMLCommand::d_cmd_log_info

protected

Used only for the log.

Definition at line 75 of file BESXMLCommand.h.

◆ d_xmlcmd_dhi

BESDataHandlerInterface BESXMLCommand::d_xmlcmd_dhi

protected

Definition at line 71 of file BESXMLCommand.h.

The documentation for this class was generated from the following files:
