HDFArray Class Reference

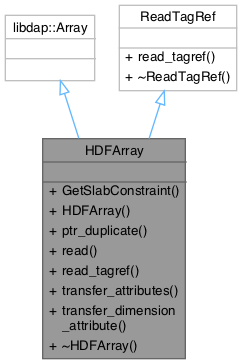

Inheritance diagram for HDFArray:

Collaboration diagram for HDFArray:

Public Member Functions
bool	GetSlabConstraint (std::vector< int > &start_array, std::vector< int > &edge_array, std::vector< int > &stride_array)
	HDFArray (const std::string &n, const std::string &d, libdap::BaseType *v)
libdap::BaseType *	ptr_duplicate () override
bool	read () override
bool	read_tagref (int32 tag, int32 ref, int &error) override
void	transfer_attributes (libdap::AttrTable *at_container) override
virtual void	transfer_dimension_attribute (libdap::AttrTable *dim)

Detailed Description

Definition at line 55 of file HDFArray.h.

Constructor & Destructor Documentation

HDFArray()

HDFArray::HDFArray	(	const std::string &	n,
		const std::string &	d,
		libdap::BaseType *	v )

Definition at line 66 of file HDFArray.cc.

Member Function Documentation

GetSlabConstraint()

bool HDFArray::GetSlabConstraint	(	std::vector< int > &	start_array,
		std::vector< int > &	edge_array,
		std::vector< int > &	stride_array )

Definition at line 161 of file HDFArray.cc.

ptr_duplicate()

BaseType * HDFArray::ptr_duplicate ( )

override

Definition at line 73 of file HDFArray.cc.

read()

bool HDFArray::read ( )

override

Definition at line 80 of file HDFArray.cc.

read_tagref()

bool HDFArray::read_tagref ( int32 tag, int32 ref, int & error )

overridevirtual

Implements ReadTagRef.

Definition at line 92 of file HDFArray.cc.

transfer_attributes()

void HDFArray::transfer_attributes ( libdap::AttrTable * at_container )

override

Transfer attributes from a separately built DAS to the DDS. This method overrides the implementation found in libdap to accommodate the special characteristics of the HDF4 handler's DAS object. The notworthy feature of this handler's DAS is that it lacks the specified structure that provides an easy way to match DAS and DDS items. Instead the DAS is flat.

This version of the method first calls the libdap implementation which, in turn, looks for attribtues that match the name of the variable exactly. Then it looks for 'dimension' attributes that should be bound to this array by searching for attribtue containers whose names fit the pattern dim<digit>, where is the name of this variable and <digit> is some interger, usually small.

Parameters

at	An AttrTable for the entire DAS. Search this for attribtues by name.

See also

HDFSequence::transfer_attributes

HDFGrid::transfer_attributes

HDFStructure::transfer_attributes

Definition at line 212 of file HDFArray.cc.

transfer_dimension_attribute()

void HDFArray::transfer_dimension_attribute ( libdap::AttrTable * dim )

virtual

Definition at line 244 of file HDFArray.cc.

---

The documentation for this class was generated from the following files:

• HDFArray.h
• HDFArray.cc
